W55MH32发送邮件给他人

本篇总结

在 W55MH32 上实现 SMTP 协议，通过 126 邮箱服务器发送电子邮件到指定收件人。

硬件平台：本例程基于 W55MH32L-EVB 开发板运行。

采购推荐：点击前往 WIZnet 官方淘宝店铺 选购 W55MH32L-EVB

SMTP 应用场景

① 物联网设备远程监控：收集传感器数据，发送定期报告或警报邮件；② 环境监测系统：将温湿度、CO2 浓度等监测数据发送到指定邮箱；③ 设备状态报告与日志记录：定时触发自动发送设备状态或运行日志；④ 远程故障报警与支持：结合传感器实现自动报警；⑤ 工业自动化和远程监控：发送设备状态、报警等信息到指定邮箱；⑥ 远程控制反馈：接收邮件解析命令并执行，通过 SMTP 反馈结果。

char    hello[50]     = "HELO localhost";                   // Identity command
char    hello_reply[] = "250 OK";                           // Id successfully responded
char    AUTH[50]      = "AUTH LOGIN";                       // Authentication request
char    AUTH_reply[]  = "334 dXNlcm5hbWU6";                 // The authentication request was successfully sent
char    name_126[100] = "[email protected]";                 // 126 Login email address
char    base64name_126[200];                                // 126 base64 encoding of the login mailbox name
char    name_reply[]     = "334 UGFzc3dvcmQ6";              // The login name was sent successfully
char    password_126[50] = "ZPURADLGRUPQLVBK";              // 126 Email login password
char    base64password_126[100];                            // 126 base64 Password
char    password_reply[] = "235 Authentication successful"; // Login successful response
char    from[]           = "[email protected]";              // Sender email
char    from_reply[]     = "250 Mail OK";
char    to[]             = "[email protected]";             // Recipient email address
char    to_reply[]       = "250 Mail OK";
char    data_init[10]    = "data";                          // Request data transfer
char    data_reply[]     = "354";                           // The request was successfully responded to HEAD
char    Cc[]             = "";                              // Cc to email
char    subject[]        = "Hello!WIZnet!";                 // subject
char    content[]        = "Hello!WIZnet!";                 // text part
char    mime_reply[]     = "250 Mail OK queued as";         // The email was sent successfully
char    mailfrom[50]     = "MAIL FROM:<>";
char    rcptto[50]       = "rcpt to:<>";
char    mime[200]        = "From:\r\n";
char    mime1[50]        = "To:\r\n";
char    mime2[50]        = "Cc:\r\n";
char    mime3[50]        = "Subject:\r\n";
char    mime4[50]        = "MIME-Version:1.0\r\nContent-Type:text/plain\r\n\r\n";
char    mime5[50]        = "\r\n.\r\n";

使用前的三点注意事项

• 修改邮箱账号及收发件人信息
• 邮箱必须开启 SMTP 功能（126 邮箱需在设置中开启 SMTP 服务并获取授权码）
• 确认邮箱所用的 SMTP 服务器地址和端口号（126 邮箱为 smtp.126.com:25）

void mailmessage(void)
{
    uint16_t len_from = strlen(from);
    uint16_t len_to   = strlen(to);
    uint16_t len_Cc   = strlen(Cc);
    uint16_t len_sub  = strlen(subject);
    strcat(hello, "\r\n");
    strcat(AUTH, "\r\n");
    base64encode(name_126, base64name_126);
    base64encode(password_126, base64password_126);
    strcat(base64name_126, "\r\n");
    strcat(base64password_126, "\r\n");
    str_insert(mailfrom, from, 11);
    strcat(mailfrom, "\r\n");
    str_insert(rcptto, to, 9);
    strcat(rcptto, "\r\n");
    strcat(data_init, "\r\n");

    str_insert(mime, from, 5);
    str_insert(mime1, to, 3);
    str_insert(mime2, Cc, 3);
    str_insert(mime3, subject, 8);
    str_insert(mime5, content, 0);
    strcat(mime, mime1);
    strcat(mime, mime2);
    strcat(mime, mime3);
    strcat(mime, mime4);
    strcat(mime, mime5);
}

uint8_t smtp_server_name[] = "smtp.126.com";
uint8_t smtp_server_ip[4]  = {0};

mailmessage(); // Mail command information processing
if (do_dns(ethernet_buf, smtp_server_name, smtp_server_ip))
{
    while (1)
    {
    }
}

void do_smtp(uint8_t sn, uint8_t *buf, uint8_t *smtp_server_ip)
{
    volatile uint8_t ret;
    uint32_t         len       = 0;
    uint16_t         anyport   = 5000;
    uint8_t          Smtp_PORT = 25;
    memset(buf, 0, ETHERNET_MAX_BUF_SIZE);
    switch (getSn_SR(sn))
    {
    case SOCK_INIT:
        ret = connect(sn, smtp_server_ip, Smtp_PORT);
        break;
    case SOCK_ESTABLISHED:
        if (getSn_IR(sn) & Sn_IR_CON)
        {
            setSn_IR(sn, Sn_IR_CON);
        }
        while (!Mail_Send_OK)
        {
            len = getSn_RX_RSR(sn);
            if (len > 0)
            {
                memset(buf, 0, ETHERNET_MAX_BUF_SIZE);
                len = recv(sn, (uint8_t *)buf, len);
                send_mail(sn, buf, smtp_server_ip);
            }
        }
        disconnect(sn);
        break;
    case SOCK_CLOSE_WAIT:
        if ((len = getSn_RX_RSR(sn)) > 0)
        {
            while (!Mail_Send_OK)
            {
                len = recv(sn, (uint8_t *)buf, len);
                send_mail(sn, buf, smtp_server_ip);
            }
        }
        disconnect(sn);
        break;
    case SOCK_CLOSED:
        socket(sn, Sn_MR_TCP, anyport++, 0x00);
        break;
    default:
        break;
    }
    if (Mail_Send_OK)
    {
        while (1)
        {
        }
    }
}

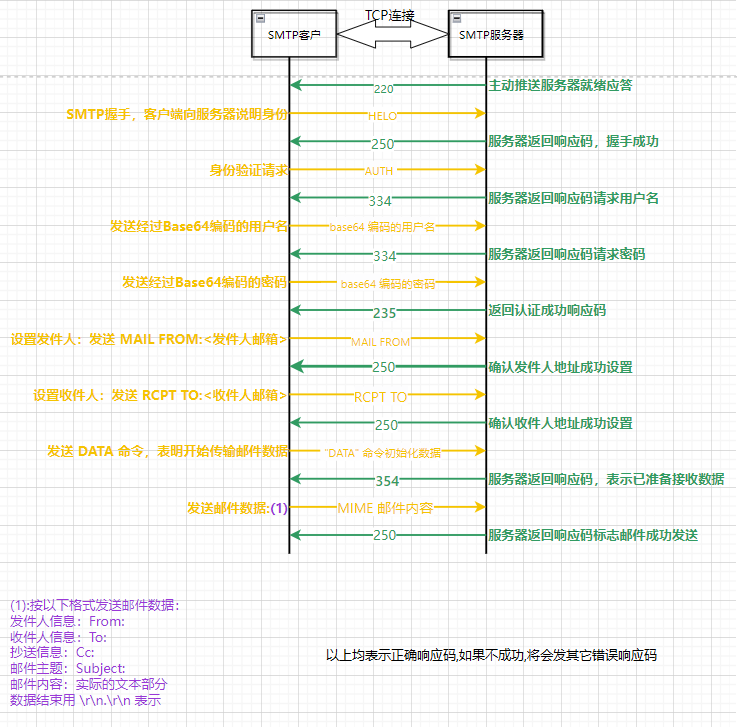

void send_mail(uint8_t sn, uint8_t *buf, uint8_t *smtp_server_ip)
{
    volatile uint8_t ret;
    switch (SMTP_STATE)
    {
    case waitfor220:
        if (strstr((const char *)buf, "220") != NULL)
        {
            ret        = send(sn, (uint8_t *)hello, strlen(hello));
            SMTP_STATE = waitforHELO250;
        }
        else printf("Connected failed!\r\n");
        break;
    case waitforHELO250:
        if (strstr((const char *)buf, hello_reply) != NULL && strstr((const char *)buf, "Mail") == NULL)
        {
            ret        = send(sn, (uint8_t *)AUTH, strlen(AUTH));
            SMTP_STATE = waitforAUTH334;
        }
        else printf("smtp handshake failed!\r\n");
        break;
    case waitforAUTH334:
        if (strstr((const char *)buf, AUTH_reply) != NULL)
        {
            ret        = send(sn, (uint8_t *)base64name_126, strlen(base64name_126));
            SMTP_STATE = waitforuser334;
        }
        else printf("AUTH authentication request failed!\r\n");
        break;
    case waitforuser334:
        if (strstr((const char *)buf, name_reply) != NULL)
        {
            ret        = send(sn, (uint8_t *)base64password_126, strlen(base64password_126));
            SMTP_STATE = waitforpassword235;
        }
        else printf("username send failed!\r\n");
        break;
    case waitforpassword235:
        if (strstr((const char *)buf, password_reply) != NULL)
        {
            ret        = send(sn, (uint8_t *)mailfrom, strlen(mailfrom));
            SMTP_STATE = waitforsend250;
        }
        else printf("password error!\r\n");
        break;
    case waitforsend250:
        if (strstr((const char *)buf, from_reply) != NULL && strstr((const char *)buf, "queued as") == NULL)
        {
            ret        = send(sn, (uint8_t *)rcptto, strlen(rcptto));
            SMTP_STATE = waitforrcpt250;
        }
        else printf("Send email failed to set up!\r\n");
        break;
    case waitforrcpt250:
        if (strstr((const char *)buf, to_reply) != NULL)
        {
            ret        = send(sn, (uint8_t *)data_init, strlen(data_init));
            SMTP_STATE = waitfordate354;
        }
        else printf("Failed to set the receiving mailbox!\r\n");
        break;
    case waitfordate354:
        if (strstr((const char *)buf, data_reply) != NULL)
        {
            ret        = send(sn, (uint8_t *)mime, strlen(mime));
            SMTP_STATE = waitformime250;
        }
        else printf("Failed to send content setup\r\n");
        break;
    case waitformime250:
        if (strstr((const char *)buf, mime_reply) != NULL)
        {
            Mail_Send_OK = 1;
            printf("mail send OK\r\n");
        }
        break;
    default:
        break;
    }
}
